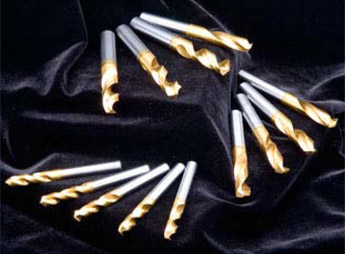

Proprietary Sputter PVD Coating for Cutting Tools
Proprietary Kabrlyn PVD coating for cutting tools utilizes an advanced sputter process instead of traditional arc methods. This coating material technique minimizes residual stress to deliver maximum adhesion across solid carbide cutting edges, preventing built up edge and protecting against extreme thermal shock during heavy metal removal operations.
Key Advantages of Kabrlyn Cutting Tool Coatings:
- Advanced Sputter Process: Eliminates residual stress to guarantee superior coating adhesion on any carbide tool subjected to heavy dynamic machining forces.
- Ultra-Smooth Surface Finish: Delivers a smooth micro-layer engineered to reduce friction and facilitate frictionless chip removal along the flute.
- Fine-Grained Coating Architecture: Combines high toughness with extreme hardness to withstand elevated cutting speeds and high temperatures.
- High Oxidation Resistance: Protects cutting edges against chemical breakdown in both wet and dry machining operations.
- High-Quality Re-Coating: Allows for full re-application at OEM quality levels during tool reconditioning for continuous longer tool life.
Kabrlyn Coating Options & Substrate Applications
Better Edge formulates specialized coating for cutting tool options tailored to specific workpiece materials and cutting setups. Whether machining tough titanium alloys, cast iron, or stainless steels, our coated cutting solutions deliver superior edge integrity.
Kabrlyn Coating Formulations:
- Kabrlyn Advantage: Engineered for solid carbide drills and end mills machining all ferrous materials, cast iron, and titanium alloys.
- Kabrlyn Plus: Designed for high-stress applications on solid carbide drills and end mills machining ferrous metals, 300 & 400 series stainless steels, and titanium alloys.
- Kabrlyn Advantage with Titanium Nitride: Features a thin exterior layer of titanium nitride (TiN) to provide added lubricity, reduce friction, improve surface finish, and achieve longer tool life in stainless steels.
Real-World Tool Life & Performance Case Studies
Real-world field testing confirms that Kabrlyn PVD coating for cutting tools dramatically outperforms standard commercial coatings under extreme cutting speeds and high temperatures.

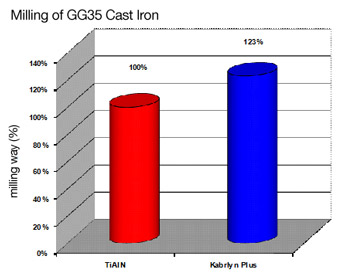

Case Study 1: Kabrlyn Plus Provided 25% Longer Tool Life
Application Parameters:
- Workpiece Material: GG35 Cast Iron
- Tool: 5/16″ Diameter Solid Carbide End Mill
- Operation: Profiling
- Radial Depth of Cut: .004″
- Axial Depth of Cut: .340″
- Cutting Parameters: 690 SFM, .003 IPR
- Performance Criteria: Catastrophic Wear Resistance

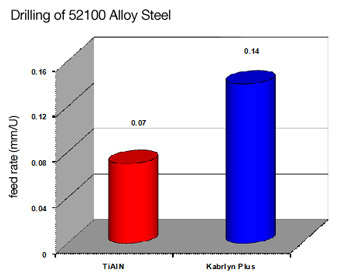

Case Study 2: Kabrlyn Plus Enabled Double the Feed Rate & 7% More Holes
Application Parameters:
- Workpiece Material: 52100 Alloy Steel
- Tool: .060″ Diameter Solid Carbide Drill
- Operation: Drilling a Blind Hole
- Radial Depth of Cut: .004″
- Axial Depth of Cut: .340″
- Cutting Parameters:
- Kabrlyn Plus: 350 SFM, .006 IPR
- TiAlN: 240 SFM, .003 IPR
- Performance Criteria: Catastrophic Wear Resistance
- # of Holes with Acceptable Finish:
- Kabrlyn Plus: 1,023 Holes
- TiAlN: 955 Holes
Interested in Kabrlyn PVD Coating for Cutting Tools?
Contact our technical team today to discuss your application or request a free quote for our proprietary cutting tool coatings.
Frequently Asked Questions About Kabrlyn PVD Coating for Cutting Tools
What is Kabrlyn PVD coating for cutting tools?
Kabrlyn PVD (Physical Vapor Deposition) coating for cutting tools is a proprietary thin-film treatment applied to solid carbide drills and end mills. It forms an ultra-hard, wear-resistant barrier over cutting edges to extend tool life, reduce friction along flutes, and maintain edge stability under high temperatures.
What does physical vapor deposition PVD stand for in industrial tool manufacturing?
Physical vapor deposition PVD refers to a process that vaporizes a protective coating material inside a vacuum chamber and deposits it atom-by-atom onto the carbide tool surface, creating a protective micro-structure with high toughness and oxidation resistance.
How does Kabrlyn PVD coating differ from traditional vacuum coating processes?
Unlike traditional arc-process tool coatings, proprietary Kabrlyn PVD coatings use an advanced sputter process. This produces almost no residual stress, ensuring superior coating adhesion under heavy dynamic forces while providing an extremely smooth surface finish to prevent built up edge.
What materials benefit most from Kabrlyn PVD coating for cutting tools?
Kabrlyn Advantage and Kabrlyn Plus are optimized for solid carbide end mills and drills machining all ferrous materials, 300 & 400 series stainless steels, cast iron, and tough titanium alloys across high performance wet and dry machining operations.
Can Kabrlyn PVD coating for cutting tools be reapplied during tool reconditioning?
Yes, Kabrlyn PVD tool coatings can be reapplied at a very high quality level. During tool reconditioning, worn solid carbide drills and end mills are re-sharpened to engineered specifications and re-coated with Kabrlyn PVD to restore high performance and deliver longer tool life.
